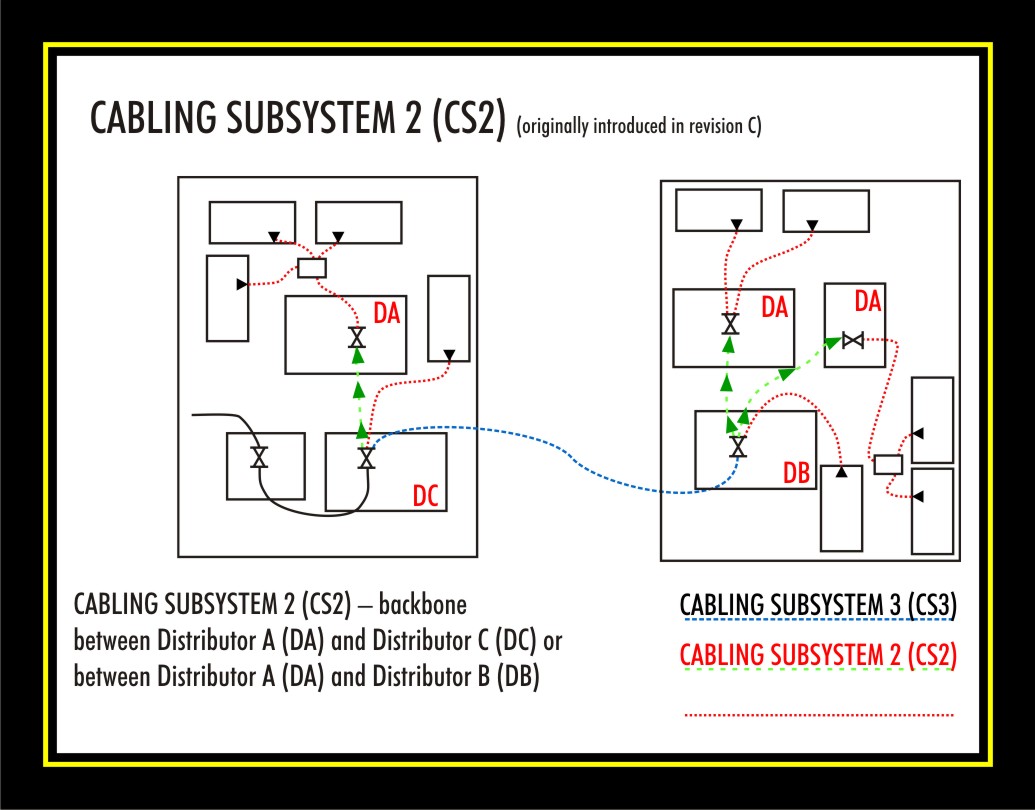

CS2 is a type of backbone that occurs when a Distributor A (HC) is connected either to Distributor C (MC or MDF) or to a Distributor B (IC or IDF).
In this example, there are three CS2 backbone links, shown here as as green dotted lines.
