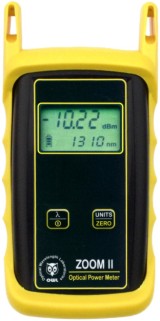

ZOOM 2 OPTICAL POWER METER
The ZOOM 2 is one of the world's most economical and precise fiber optic power meters delivering professional performance and a complete feature set for optical loss testing in both multimode and singlemode networks.

The ZOOM 2 is N.I.S.T. Traceable and is calibrated at four commonly used industry standard wavelengths (850, 1300, 1310, and 1550), which makes it an ideal choice for both multimode and singlemode testing.

Additionally, the ZOOM 2 is calibrated at 1490nm, making it an excellent option for measurement of FTTx PON networks.

The ZOOM 2 can store reference values for all of its calibrated wavelengths, and displays optical power as an absolute value in dBm or relative to a user set "zero" reference in dB. It has an intuitive two-button interface, with one button controlling power and wavelength selection, while the other is used to toggle between dBm, dB, and uW, as well as setting the optical reference, or "zero".

Other standard features include a 4-digit, 0.01dB resolution display, battery status indicator, and a 2.5mm Universal detector port that is compatible with FC, ST, SC, DIN, and any other 2.5 mm ferrule connectors!

The following accessories are included with each ZOOM 2: rugged rubber boot,  NIST certificate of calibration, and operations manual on CD.

Call OWL at 262-473-0643 for more details!
ZOOM 2 Optical Power Meter Sales Video



CLICK HERE FOR KIT VERSION

PRICING
Part # Description Detector Type Dynamic Range Integrated VFL Price
ZO-2 ZOOM 2 InGaAs +5 to -60 dBm No 320.00
ZO-2V ZOOM 2 VFL InGaAs +5 to -60 dBm Yes 540.00

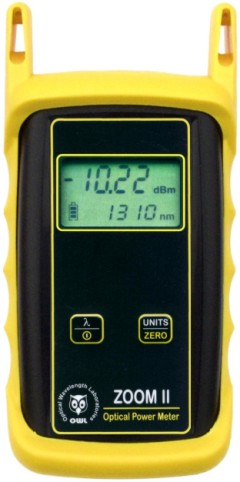

(click image for larger, more detailed picture)
KEY BENEFITS
  • InGaAs photodetector
  • 2.5mm / 1.25mm universal connector
  • Multimode and singlemode ready
  • NIST Traceable
  • Calibrated wavelengths: 850, 1300, 1310, 1490, 1550nm
  • Separate zero reference for each calibrated wavelength
  • Small, hand-held size
  • Ergonomic protective rubber boot
  • Long battery life: over 250 hrs. on internal re-chargeable Lithium Polymer battery
  • Bright 4-digit display allows accurate readings in dBm, dB, and uW
  • Battery life, stored data, temperature and power units indicator
  • Intuitive 2-button operation
  • Measurement range: +5 to -60 dBm
  • Absolute accuracy:  ±0.20 dB
  • Resolution: 0.01dB
  • Linearity:  ±0.20 dB
OPTIONAL



Flashing red Visual Fault Locator (VFL; also known as VFF)

Click the image to learn more about the integrated VFL port

HELPFUL VIDEOS

VIDEO:
ZOOM 2 Sales Video

VIDEO:
Choosing a Test Kit

VIDEO:
Universal Ports

VIDEO:
Mandrels

VIDEO:
Replacing the Battery

VIDEO:
Cleaning Optical Ports


DOCUMENTS
Product Overviews Operations Guide
ZOOM 2 (ZO-2) ZOOM 2 (ZO-2)
ZOOM 2 VFL (ZO-2V) ZOOM 2 VFL (ZO-2V)
Miscellaneous
Quick Reference Guide Selector
Self-diagnostic Procedure Selector
Detector Port Cleaning Brochure
