OWLTREK QUAD
KIT OTDR
Quad OTDR Bundle

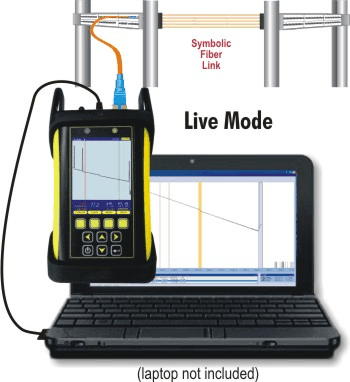

Live mode
is an advanced feature normally found in high-end OTDRs. Live
mode continuously shoots OTDR traces every few seconds, allowing users to
monitor changes in the optical fiber in real-time.
In addition, when the OWLTrek is
attached to a PC, OWLView software includes a Live Viewer mode that takes
the OTDR trace and expands it onto the PC display for easier viewing.
Customers outside the
US: Prices shown are in US Dollars only. Your local price will be different
due to additional duties, taxes, currency conversion,
shipping/handling, and other charges related to delivering product
to your country. Your local distributor can give
you complete pricing in your area. Click here
if you need assistance with locating a distributor in your
area.
Sale
price only valid in the US.
Each Quad Kit OTDR includes:
OWLTrek 850/1300nm
multimode OTDR (WTO-M85)
OWLTrek 1310/1550nm
singlemode OTDR (WTO-S35)
Integrated Visual
Fault Locator (VFL) port on each OTDR unit
Hard-shell carrying
case
USB download cable
Battery chargers (US
only)
USB flash drive with
OWLView trace software, USB driver, product manuals, and product
videos
With an unbeatable combination of a small pocket-sized form factor, a high-resolution
color LCD display, and some of the lowest pricing in the industry, the OWLTrek OTDR from OWL is the WISE choice for cost-conscious buyers who only need to perform basic troubleshooting or restoration tasks on
multimode optical fiber networks. All this from an OTDR that really is pocket-sized and fair priced, yet having comparable features and specifications to other OTDRs in its class.
Affordability. In a time when it is becoming increasingly difficult to justify equipping an entire technical staff with high-end equipment, companies are even more cost-conscious than before.
These companies outfit a majority of their installation/repair personnel with OWLTrek
OTDRs, and set aside a few high-end “expert” devices for high-priority
jobs.
Call OWL at 262-473-0643 for more information about this new and exciting development in OTDR testing, and discover why OWL is the wise choice in fiber test equipment!
(click image for larger, more detailed
picture)
(quarter added to
illustrate small hand-held size of OTDR)
BOOT SHOWN WITH UNIT
EXPECTED TO BE AVAILABLE JANUARY 2012
Automatic event location is an advanced feature normally found only in expensive, high-end OTDRs. The OWLTrek OTDR now brings this feature to the entry-level OTDR market.
The OWLTrek OTDR includes an event table showing the location, type, reflectance level, and loss of each
event. Users can select an event to view, and automatically zoom in
on the event on the OTDR display.
Image enhanced for
photographic effect
Automatic Screen
Rotation
The OWLTrek OTDR may be pocket-sized, but the large 2.8” high-resolution color LCD display can show even the longest traces with ease. And, for greater viewing flexibility and trace detail, OWL has implemented state-of-the-art MEMS technology which “flips” the high-resolution color LCD display between portrait and landscape mode automatically. In landscape mode, a wider viewing area means greater viewing detail when zooming in on events.
Integrated
visual fault locator (VFL) port
OWLView
OTDR Software
OWLView software allows the user to download
stored traces from the OWLTrek OTDR to a PC.
Features include:
-- Event analysis
-- Data storage using Telcordia GR-196 2.0 file format
-- Printed reports for hard-copy record keeping
-- Help menu with links to manuals, quick reference guides, and videos
**- factors that limit OTDR
distance range include splices, interconnections, fiber quality, fiber
attenuation, and other loss inducing events such as micro-bends and
macro-bends
OWL
manufactures a complete line of fiber optic test equipment for a wide
range of applications, including telco, WAN, MAN, LAN, CATV, IT,
manufacturing, and laboratory.
OWL's complete line of fiber optic
testers have capabilities ranging from simple optical power and optical
loss measurement to complete standards-based fiber optic link
certification for both multimode and singlemode fibers, including
10-Gigabit Ethernet!
