OWLTREK SINGLEMODE OTDR
OTDR prices as
low as 1595.00! (USA only) limited sale !
Locate breaks and other faults in singlemode
fibers within six feet up to 80 miles away! **
Live Mode. Live mode
is another advanced feature normally found in high-end OTDRs. Live
mode continuously shoots OTDR traces every few seconds, allowing users to
monitor changes in the optical fiber in real-time.
In addition, when the OWLTrek is
attached to a PC, OWLView software includes a Live Viewer mode that takes
the OTDR trace and expands it onto the PC display for easier viewing.
*
Dynamic Range / Distance: OWLTrek
singlemode OTDRs are capable of finding breaks in singlemode optical
fibers up to 80 miles to within +/- 6 feet. Additional splices and other
loss producing events will limit end distance estimates. This
is true for all OTDRs. However, passive singlemode Telco links
are almost always less than 12 miles long. At this
distance, OWLTrek OTDRs have break finding capability of about
+/- 1 meter ! In fact, increased dynamic range is actually a
disadvantage in almost all cases because of the increased OTDR cost
(usually thousands of dollars more).
Sale
price only valid in the US.
Customers outside the
US: Prices shown are in US Dollars only. Your local price will be different
due to additional duties, taxes, currency conversion,
shipping/handling, and other charges related to delivering product
to your country. Your local distributor can give
you complete pricing in your area. Click here
if you need assistance with locating a distributor in your
area.
With an unbeatable
combination of a small pocket-sized form factor, a high-resolution color
LCD display, and some of the lowest pricing in the industry, the OWLTrek
OTDR from OWL is the WISE choice for cost-conscious buyers who only need
to perform basic troubleshooting or restoration tasks on multimode optical
fiber networks. All this from an OTDR that really is pocket-sized and fair
priced, yet having comparable features and specifications to other OTDRs
in its class.
Affordability. In a
time when it is becoming increasingly difficult to justify equipping an
entire technical staff with high-end equipment, companies are even more
cost-conscious than before. These companies outfit a majority of their
installation/repair personnel with OWLTrek OTDRs, and set aside a few
high-end “expert” devices for high-priority jobs.
Call OWL at 262-473-0643
for more information about this new and exciting development in OTDR
testing, and discover why OWL is the wise choice in fiber test equipment!

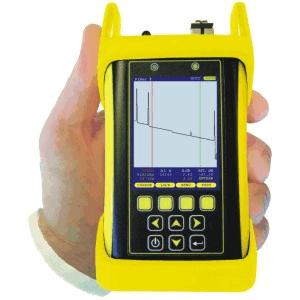

(click image for larger,
more detailed picture)
(quarter added to
illustrate small hand-held size of OTDR)
BOOT SHOWN WITH UNIT
EXPECTED TO BE AVAILABLE JANUARY 2012
Automatic
event location is an advanced feature normally found only in expensive,
high-end OTDRs. The OWLTrek OTDR now brings this feature to the
entry-level OTDR market.
The OWLTrek OTDR includes an event table
showing the location, type, reflectance level, and loss of each event.
Users can select an event to view, and automatically zoom in on the event
on the OTDR display.
Image enhanced for
photographic effect
Automatic Screen
Rotation
The
OWLTrek OTDR may be pocket-sized, but the large 2.8” high-resolution
color LCD display can show even the longest traces with ease. And, for
greater viewing flexibility and trace detail, OWL has implemented
state-of-the-art MEMS technology which “flips” the high-resolution
color LCD display between portrait and landscape mode automatically. In
landscape mode, a wider viewing area means greater viewing detail when
zooming in on events.
Integrated visual fault
locator (VFL) port
OWLView OTDR Software
OWLView
software allows the user to download stored traces from the OWLTrek OTDR
to a PC.
Features include:
-- Event analysis
-- Data storage using Telcordia GR-196 2.0 file format
-- Printed reports for hard-copy record keeping
-- Help menu with links to manuals, quick reference guides, and videos
**- factors that limit OTDR
distance range include splices, interconnections, fiber quality, fiber
attenuation, and other loss inducing events such as micro-bends and
macro-bends
Each unit includes:
OWLTrek Singlemode OTDR
Integrated Visual
Fault Locator (VFL) port
Hard-shell carrying
case
USB download cable
Battery charger (US
only)
USB flash drive with
OWLView trace software, USB driver, product manuals, and product
videos
OWL
manufactures a complete line of fiber optic test equipment for a wide
range of applications, including telco, WAN, MAN, LAN, CATV, IT,
manufacturing, and laboratory.
OWL's complete line of fiber optic
testers have capabilities ranging from simple optical power and optical
loss measurement to complete standards-based fiber optic link
certification for both multimode and singlemode fibers, including
10-Gigabit Ethernet!
