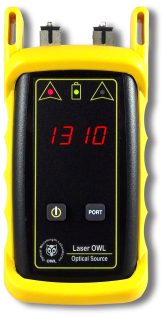

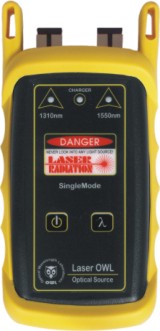

Laser OWL Singlemode 1310/1550 Laser Source

NOTE: THIS PRODUCT REPLACES THE Laser OWL Singlemode Light Source (SKU: LO-1xx)

The Laser OWL is a cost effective, compact, handheld laser light source.  The temperature compensated outputs are calibrated to couple -10dBm of optical power into an 9 micron single mode fiber.  The light source is offered with a 1310nm and a 1550nm laser installed.

The source is simple to operate with an intuitive 2-button interface: one button controlling power and the other for selecting output wavelength.  LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

Key Benefits:

bulletHighly stabilized
bulletRugged & Economical
bullet-10dBm Calibrated Output (Customizable)
bulletCompact Size
bulletPhotodiode Compensated
bulletExtended Battery Life
bulletLow Battery Indicator
bulletNIST Traceable
bulletAvailable with FC, SC, or ST fiber connectors

Pricing

SKU #

Description

Price

We also have a 0dBm high-power (HP) version of this source.  Click here for details!
LO2ST 1310 & 1550nm stabilized -10dbm single mode laser source with ST connector 1085.00
LO2SC 1310 & 1550nm stabilized -10dbm single mode laser source with SC connector 1085.00
LO2FC 1310& 1550nm stabilized -10dbm single mode laser source with FC connector 1085.00

NEVER BUY ANY SOURCE WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY!

Documents

Laser OWL Datasheet Laser OWL Series Manual

Products ship with owner's manuals on CD.  Adobe Acrobat Reader (tm) is required to view these documents.

weebly analytics



OWL manufactures a complete line of fiber optic test equipment for a wide range of applications, including telco, WAN, MAN, LAN, CATV, IT, manufacturing, and laboratory.

OWL's complete line of fiber optic testers have capabilities ranging from simple optical power and optical loss measurement to complete standards-based fiber optic link certification for both multimode and singlemode fibers, including 10-Gigabit Ethernet!

Product lines include: optical power meters, light sources, talk sets, optical length testers, visual fault locators and serial plastic fiber transceivers. All OWL optical power meters and light sources are NIST traceable.

NOW AVAILABLE: OWLTrek singlemode optical time domain reflectometer (OTDR)

For more information or for assistance in choosing the right fiber optic test equipment for your needs, send us an information request and we would be happy to assist you.
