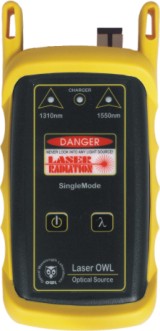

Laser OWL 1550 HP (High Power) Singlemode Laser Light Source

NOTE: THIS PRODUCT REPLACES THE 1550 OWL HP Singlemode Light Source (SKU: LO-1550xx-HP)

The Laser OWL 1550 HP (High-Power) is a cost effective, compact, handheld laser light source. The temperature compensated outputs are calibrated to couple 0dBm of optical power into an 9 micron single mode fiber. The light source is offered in a single 1550nm version, and can be easily upgraded to include a 1310nm laser.

The source is simple to operate with an intuitive 2-button interface: one button controlling power and the other for selecting output wavelength. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

Key Benefits

	Affordable
	0dBm Calibrated Output Power
	Compact Size
	Photodiode Compensated
	Extended Battery Life
	Low Battery Indicator
	NIST Traceable
	Available with SC, ST, or FC fiber connectors

Pricing

SKU#	Description	Price
LO2-15ST-HP	1550nm stabilized 0dBm single mode laser source with ST connector	995.00
LO2-15SC-HP	1550nm stabilized 0dBm single mode laser source with SC connector	995.00
LO2-15FC-HP	1550nm stabilized 0dBm single mode laser source with FC connector	995.00

NEVER BUY ANY SOURCE WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY

Documents

Laser OWL 1550 HP Datasheet

Laser OWL Series Manual

Products ship with owner's manuals on CD. Adobe Acrobat Reader (tm) is required to view these documents.

OWL manufactures a complete line of fiber optic test equipment for a wide range of applications, including telco, WAN, MAN, LAN, CATV, IT, manufacturing, and laboratory. OWL's complete line of fiber optic testers have capabilities ranging from simple optical power and optical loss measurement to complete standards-based fiber optic link certification for both multimode and singlemode fibers, including 10-Gigabit Ethernet! Product lines include: optical power meters, light sources, talk sets, optical length testers, visual fault locators and serial plastic fiber transceivers. All OWL optical power meters and light sources are NIST traceable. NOW AVAILABLE: OWLTrek singlemode optical time domain reflectometer (OTDR) For more information or for assistance in choosing the right fiber optic test equipment for your needs, send us an information request and we would be happy to assist you.	Need Custom Features? We Can Help! Call 262-473-0643
