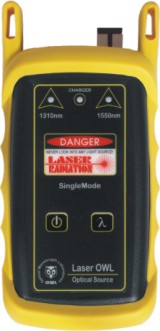

Laser OWL 1550 Singlemode Laser Light Source

NOTE: THIS PRODUCT REPLACES THE 1550 OWL Singlemode Light Source (SKU: LO-1550xx)

The Laser OWL 1550 is a cost effective, compact, handheld laser light source. The temperature compensated outputs are calibrated to couple -10dBm of optical power into a single mode fiber. The light source is offered with a single 1550nm laser installed, and can be easily upgraded to include a 1310nm source.

The source is simple to operate with an intuitive 2-button interface: one button controlling power and the other for selecting output wavelength. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

Key Benefits:

	Highly stabilized
	Rugged & Affordable
	-10dBm Calibrated Output (Customizable)
	Compact Size
	Photodiode Compensated
	Extended Battery Life
	Low Battery Indicator
	NIST Traceable
	Available with SC, ST, or FC fiber connectors

Pricing

SKU #	Description	Price
LO2-15ST	1550nm stabilized -10dbm single mode laser source with ST connector	690.00
LO2-15SC	1550nm stabilized -10dbm single mode laser source with SC connector	690.00
LO2-15FC	1550nm stabilized -10dbm single mode laser source with FC connector	690.00

NEVER BUY ANY SOURCE WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY!

Documents

Laser OWL 1550 Datasheet

Laser OWL Series Manual

Products ship with owner's manuals on CD. Adobe Acrobat Reader (tm) is required to view these documents.

OWL manufactures a complete line of fiber optic test equipment for a wide range of applications, including telco, WAN, MAN, LAN, CATV, IT, manufacturing, and laboratory. OWL's complete line of fiber optic testers have capabilities ranging from simple optical power and optical loss measurement to complete standards-based fiber optic link certification for both multimode and singlemode fibers, including 10-Gigabit Ethernet! Product lines include: optical power meters, light sources, talk sets, optical length testers, visual fault locators and serial plastic fiber transceivers. All OWL optical power meters and light sources are NIST traceable. NOW AVAILABLE: OWLTrek singlemode optical time domain reflectometer (OTDR) For more information or for assistance in choosing the right fiber optic test equipment for your needs, send us an information request and we would be happy to assist you.	Need Custom Features? We Can Help! Call 262-473-0643
