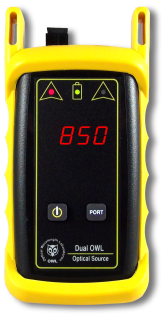

Dual OWL 850 LED Source

NOTE: THIS PRODUCT REPLACES THE 850 OWL Multimode Light Source (SKU: DO-850)

The Dual OWL 850 is a cost effective, compact, handheld light source. The temperature compensated outputs are calibrated to couple -20dBm of optical power into multimode fiber. The light source is offered with a single 850nm source installed, and can be easily upgraded to include a 1300nm source.

The source is simple to operate with an intuitive 2-button interface. One button controls power, and the other selects the output wavelength. LED indicators highlight the selected source and verify that battery power is sufficient to maintain the calibrated output power.

Key Benefits

	Highly stabilized
	Temperature Compensated
	-20dBm Calibrated Output (Customizable)
	Compact Size
	Rugged & Economical
	Extended Battery Life
	Low Battery Indicator
	NIST Traceable
	Available with ST or SC connectors

Pricing

SKU #	Description - (Click the links below to view the PDF data sheet)	Price
DO2-85st	850nm Multimode Stabilized LED Light Source (ST connector)	158.00
DO2-85sc	850nm Multimode Stabilized LED Light Source (SC connector)	184.00
DOU-1300	Upgrade to include 1300nm	245.00

NEVER BUY ANY SOURCE WITHOUT U.S. GOVERNMENT N.I.S.T. TRACEABLE ACCOUNTABILITY !

Documents - (Click the links below to view the PDF data sheet)

Dual OWL 850 Datasheet

Dual OWL Series Manual

Products ship with owner's manuals on CD. Adobe Acrobat Reader (tm) is required to view these documents.

OWL manufactures a complete line of fiber optic test equipment for a wide range of applications, including telco, WAN, MAN, LAN, CATV, IT, manufacturing, and laboratory. OWL's complete line of fiber optic testers have capabilities ranging from simple optical power and optical loss measurement to complete standards-based fiber optic link certification for both multimode and singlemode fibers, including 10-Gigabit Ethernet! Product lines include: optical power meters, light sources, talk sets, optical length testers, visual fault locators and serial plastic fiber transceivers. All OWL optical power meters and light sources are NIST traceable. NOW AVAILABLE: OWLTrek singlemode optical time domain reflectometer (OTDR) For more information or for assistance in choosing the right fiber optic test equipment for your needs, send us an information request and we would be happy to assist you.	Need Custom Features? We Can Help! Call 262-473-0643
